Spotting User Confusion: How Eye Tracking AI Reveals the “Gaze Plot Loop” in Your UX

Participants will tell you the page “made sense.” Then you watch the recording and see their eyes bounce between the same two elements six times before they click anything. That gap between what users say and what they actually do is where eye tracking earns its keep.

A gaze plot loop is exactly what it sounds like: a repeated fixation cycle between the same small cluster of elements. It is one of the most visual, defensible tells of user confusion available to researchers. But “visual” doesn’t mean “obvious,” and “confusion” isn’t the only explanation. To use loops well, you need to know how to spot them, what causes them, and when to trust them—and when to keep digging.

1. What Is a “Gaze Plot Loop”?

A gaze plot (sometimes called a scanpath) shows the sequence of fixations as a series of numbered bubbles connected by lines. Bubble size typically indicates how long the user fixated, and the lines show saccades—the quick jumps between fixations.

Normal reading and scanning patterns generally progress through content sequentially (usually top-to-bottom and left-to-right), with an occasional re-read.

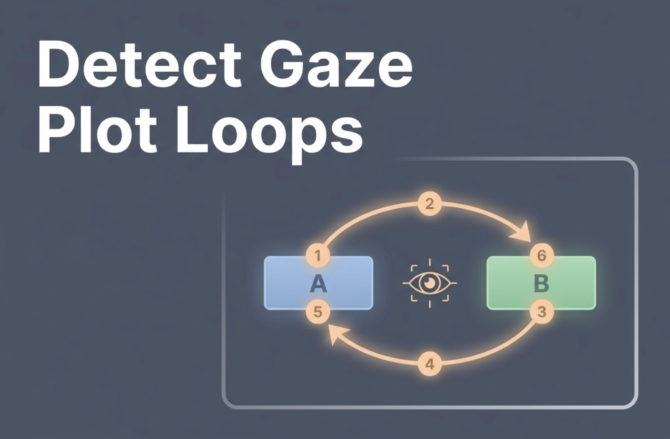

A loop breaks that pattern. The operational definition of a loop is when a user’s gaze returns to the same Area of Interest (or small cluster of AOIs) two or more times in rapid succession (e.g., $A \to B \to A \to B$) without making forward progress in their task.

Where Loops Typically Cluster

• CTA buttons placed next to ambiguous or jargon-heavy labels.
• Pricing columns in complex comparison tables.
• Form fields located near poorly formatted error messages.
• Navigation items that compete for the same user intent.
• Feature bullets and their corresponding plan headers.

That cycling motion, especially when it stalls task progress, is your primary signal. The tighter and more repetitive the cluster, the more it is worth investigating.

2. How to Spot a Loop Fast (Without Over-Reading the Data)

When you’re reviewing dozens of sessions, you cannot afford to stare at every scanpath for five minutes. Instead, use this quick five-point check for repeatability and locality:

1. Identify the cluster: Which two to four AOIs does the gaze bounce between? Can you draw a tight bounding box around them?
2. Count the cycles: A good rule of thumb is two to three or more returns to the same elements within a short time window. One return is just a re-read; three or more is a loop.
3. Check for stalled progression: Does the user move forward in the task after this cluster, or does the loop continue until they either commit blindly or abandon the page?
4. Evaluate fixation duration: Are the fixation bubbles growing inside the loop? Longer fixations on the same elements suggest the user is working harder to process information, rather than just skimming.
5. Cross-reference interaction timing: If you have click or hover data, look for pauses, repeated hovers, or backtracks within that same window.

The Scale Rule: One person looping once is a clue worth noting. Multiple participants looping in the exact same place is a structural UX flaw.

3. Root Causes: Why Gaze Plot Loops Happen

Most loops trace back to one of two root causes: ambiguity or cognitive overload. The user either cannot figure out what an element means, or they have too many competing signals to decide what to do next.

UX Issue	Gaze Behavior	Actionable Fix
Ambiguous Microcopy	Gaze bounces between a label and its input field or helper text.	Rewrite the label to state the outcome clearly (e.g., change “Plan” to “Choose your billing cycle”).
Competing Hotspots	Attention splits evenly across two or three CTAs as gaze ping-pongs between them.	Establish clear visual hierarchy. Reduce to one primary action and demote secondary options.
Weak Visual Hierarchy	Gaze wanders aimlessly, returning to the starting point without settling.	Increase contrast on the primary element and reduce the visual weight of surrounding details.
Choice Overload	Loop runs continuously across multiple plan cards, feature columns, or pricing tiers.	Highlight a “Recommended” option, use progressive disclosure, or provide a comparison filter.
Poor Error Clarity	Gaze cycles repeatedly between an error message and the input field or CTA.	Place error text inline with the field it belongs to and use specific, actionable recovery language.

4. Ruling Out False Positives (When a Loop is NOT Confusion)

A loop is a hypothesis, not a verdict. Before presenting a loop to stakeholders as definitive proof of “user confusion,” make sure to rule out these benign explanations:

• Deliberate Comparison: High-stakes choices (such as pricing tiers, critical permission prompts, or insurance options) naturally produce loops. Here, the user is carefully cross-referencing values, not feeling lost.
• First-Time Layout Learning: Unfamiliar interfaces or complex flows can generate brief looping behavior as users build a mental model of the page layout. This often resolves quickly within the same session.
• Intentional Re-reading: Highly dense, crucial content (such as legal text, technical specifications, or detailed terms of service) requires multiple passes by design.

The Validation Checklist

To distinguish true confusion from healthy comparison, check three things:

• [ ] Did they verbalize uncertainty? Check if the participant said things like “I’m not sure what this means” vs. confident comparison like “I’m deciding between the two plans.”
• [ ] Did they make eventual progress? Observe if the interaction ended in a confident click, or if it resulted in a timeout, backtrack, or task abandonment.
• [ ] Were effort markers present? Look for long fixation durations, abrupt head movements, or notable pauses clustered with the loop, as opposed to paced and deliberate visual scanning.

5. Scaling with AI and Triangulating Signals

Spotting loops by manually eyeballing individual scanpaths does not scale. Ten sessions might be manageable, but fifty sessions introduce researcher fatigue and analysis bias.

This is where AI tools become highly practical. They do not replace your judgment; they simply automate the tedious manual scanning. A platform that combines gaze plots and heatmaps with automated session understanding can flag segments where gaze repeatedly transitions between specific AOIs, surface timecodes where users stall, and isolate key patterns for your review.

To build an airtight case, triangulate the eye tracking data with parallel session signals:

• Gaze Plot / AOI Transitions: Reveals where the loop is physically located.
• Fixation Duration Patterns: Signals whether cognitive effort and frustration are increasing.
• Interaction Events: Tracks whether the loop actively blocks task progress (e.g., missed clicks).
• Transcription + Sentiment: Surfaces what the user actually said and whether their tone signaled uncertainty.
• Engagement/Distraction Signals: Identifies whether attention is dropping or spiking during the loop.

Using a platform like Adoreboard allows you to combine these layers seamlessly. It finds the attention loops in the eye tracking layer, couples them with emotional responses from facial coding, and synthesizes the transcripts using generative AI. Triangulation turns a raw gaze metric into an undeniable UX insight.

6. How to Turn a Loop into Stakeholder Action

A complex scanpath diagram rarely convinces busy stakeholders. They need a traceable story: Signal $\to$ Behavior $\to$ Cause $\to$ Fix $\to$ Expected Outcome.

Rather than using generic placeholders, here is an example of a completed, real-world Loop Finding Card from a B2B SaaS checkout test:

### Premium SaaS checkout Page: Plan Selection Loop Finding



* **Screen & Task Context:** Users were asked to review billing details and choose their subscription tier on the global checkout page.

* **Loop AOIs:** “Growth Tier Price Text” and “Annual Billing Cycle Discount Banner”.

* **Evidence:** 45% of test participants exhibited a prominent $A \to B \to A \to B$ gaze loop. The average time-to-next-step within this cluster expanded from 7 seconds to 32 seconds. When looking at this loop, three users stated, *”I can’t tell if the price shown includes the discount, or if the discount gets applied later.”*

* **Risk:** High shopping cart abandonment. High cognitive weight causes users to second-guess the final charge, leading to high exit rates on the checkout page.

* **Recommended Fix + Hypothesis:** “If we display the exact discounted price directly next to the billing option and update the microcopy, we expect subscription select loops to drop by 60% and cart conversions to increase by 12%.”



Prioritization Framework

When deciding which loops to fix first, weigh three key factors:

1. Frequency: How many users loop here?
2. Severity: Does it block task completion entirely, or does it just slow it down?
3. Business Impact: Is this happening on a high-value conversion step (like checkout) or a low-traffic edge case?

7. Study and Tooling Setup Essentials

Reliable loop detection starts before you run your first participant. Keep these parameters in mind during setup:

• Calibration Discipline: Poor calibration smears fixation data across elements that are physically close together. This creates “accidental loops” where none exist. Always verify calibration at the start of each session, not just once.
• Pilot Testing: Run a small pilot with 2–3 participants to confirm your AOIs are mapped to the right elements and that fixation data registers at the element level, rather than the broad zone level.
• Hardware vs. Webcam: Webcam-based eye tracking introduces more noise than lab-grade hardware. If you are using webcams, build slightly wider AOI margins to avoid tracking drift from distorting your loop metrics.
• Tooling Requirements: Ensure your platform supports gaze plots/scanpaths (not just aggregate heatmaps), transition metrics between AOIs, and session replay with synchronized timecodes.

Conclusion

At its core, a gaze plot loop is visual proof of cognitive friction. It shows you the exact moment when your interface stops guiding the user and starts demanding extra work from them.

By treating these loops as hypotheses to be triangulated with behavioral data, user sentiment, and automated AI summaries, you can transform complex eye-tracking data into highly persuasive, structured recommendations. The visuals capture the problem; your synthesis drives the solution.

If you only do one thing: Whenever you find a prominent gaze plot loop, cross-reference it with your session transcripts. If the loop is accompanied by a silent pause or a verbalized sigh of confusion, you have found a design flaw that is actively costing you conversions.

Frequently Asked Questions (FAQs)

1. How do I distinguish a gaze plot loop from a user just reading a paragraph of text?

Reading behavior has a highly structured, rhythmic pattern: progressive horizontal saccades from left to right, followed by a rapid return sweep to the beginning of the next line below. A gaze plot loop, on the other hand, is a cyclical, closed-loop pattern (like $A \to B \to A \to B$) that repeatedly jumps back and forth between distinct visual elements (like a label and a button) without moving down or forward through the page layout.

2. What is the minimum participant sample size needed to trust that a loop indicates a genuine UX flaw?

While qualitative usability testing can yield strong insights with as few as 5 to 8 participants, quantitative confidence in eye-tracking loops typically requires at least 15 to 20 clean sessions per segment. If you see the exact same loop pattern in more than 30% of your sample, it is highly likely to be a systemic layout or copy issue rather than individual user variation.

3. How do I explain a “gaze plot loop” to a non-technical stakeholder?

The easiest way to explain it to stakeholders is with a simple analogy: “Imagine a customer standing in a grocery aisle, looking at a box of cereal, then looking at the price tag, then back to the cereal, then back to the price tag, six times in a row without putting it in their cart. They aren’t shopping; they’re stuck trying to figure out if they’re getting tricked. That is what this gaze loop on our pricing page shows.”

4. If my eye-tracking software doesn’t support automated transition matrices, how can I find loops efficiently?

If your tool lacks automated transition mapping (which tracks the sequence of AOIs visited), rely on session replay filtering. Filter your sessions for users who experienced high “Time on Page” or “Stalled Progress” (e.g., users who spent 30+ seconds on a step without clicking). Fast-forward to those specific timecodes in the session replay and visually review the scanpath overlays; you will find the loops concentrated in those high-dwell moments.
